Double Purpose FFS Machines for Liquids and Granules MODEL-0520DBL

Double Purpose FFS Machines for Liquids and Granules MODEL-0520DBL
AN IDEAL MACHINE FOR CO-PACKERS

FFS 0520DBL FFS 2050DBL

This machine is made in INDIA

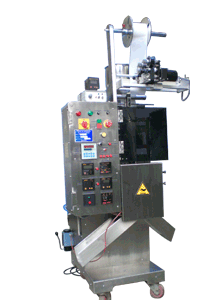

A versatile fully automatic vertical form fill seal machine capable for packing both liquids & powders in portion pack sachets. The machine is ideally suitable for free flowing liquids, powders and granules.

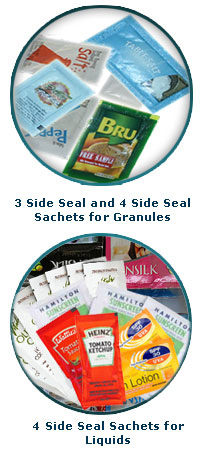

It is the most versatile 2-in-1 machine to pack shampoo, body lotion, sauces, jam, sugar, salt, pepper, etc. in single use sachets which can be used in Restaurants, Hotels, Fast Food Centers and Airline industries.

By installing this machine, you can run a highly profitable and flexible packaging operation. Since it can be used to pack both powders and liquids, this machine will never be idle! You do not have to refuse any job because you have a machine for all types of products.
THIS IS AN IDEAL MACHINE FOR CO-PACKERS.

The machine has an ATM 19 Electronic Packing Control Device for step-less controlling of the sachet length, eye mark tracking for print correction, low wastage film – setting system and display of total count and machine speed.

The machine has a choice of two Dosing systems:
- Volumetric cup filler for granules..
- Liquid dozer for liquids.

The machine is equipped with advanced features like warning device cum indicator for vertical & horizontal heaters, end of reel sensor and hopper level indicator with auto stop.

All these modern techniques make the machine ideally suitable for free flowing liquids, powder and granules in food service and contract packaging operations.

COMPLIANCE WITH EUROPEAN MACHINERY DIRECTIVES
The machine displayed on this page is classified within the relevant EU directives and further conforms with the specified EU harmonized standards and in compliance with the relevant directive, the technical file of the product displayed on this page is held within the EU with our authorised representative.

OUTSTANDING FEATURES

# Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF.

# Internationally well-known reputed components used in the construction of the machine.

# Supplied ready to use, mounted on movable castor wheels. It does not require any installation. Simply place it where you want and start production! This machine does not require any compressor, hydraulic system, or special electrical wiring.

# Available for 220 volts AC single phase / 110 volts AC single phase power supply.

# Packs either powder or liquid.

# Powder / granule filling with stainless steel volumetric cup filler.

# Accurate liquid filling and easy volume adjustment with a high precision filling piston.

# Electrical / mechanical protections as per European / American standards.

# Accurate filling and easy weight adjustment with a high precision volumetric cup filler.

# Self contained, ready to use machine. Does not require any compressor.

# All contact parts made of stainless steel construction.

# Safety features such as emergency stop switch, heater covers, sealer covers and forming collar covers as per European safety requirements.

SIKRI Machines come with a number of accessories.Please view these to decide what you need with your machine.

CLICK HERE To get a quotation from us as per YOUR specific requirement!

TECHNICAL SPECIFICATION

Pouch shape	....	4- Side seal/ 3- Side seal. Single track

End cut pattern	....	Straight / Zigzag / Easy Tear Notch / Perforation

Packing Size	....	Repeat Length: 60 to 100 mm 90 to 160mm Film Width: 80 to 160 mm

Packed Weight	....	5 grams or ml to 20 grams or ml

Packing Speed	....	Upto 100 sachets per minute

Packing Material	....	Heat sealable laminated film like PET + PE, Foil + PE paper + Foil + PE , PET + Foil +PE,Paper+ PE etc.

Electricals	....	AC 220V 50 Hz Single Phase Motor: ½ Kw. Heaters: 4×350 watt

Machine Dimensions	....	L×W×H : 750 × 815 × 1880 (mm) (approx.)

Crate Dimensions	....	L×W×H : 965 × 850 × 1800 (mm) (approx.)

Machine Weight	....	380 Kgs. Net/450 Kgs. Gross (approx.)
