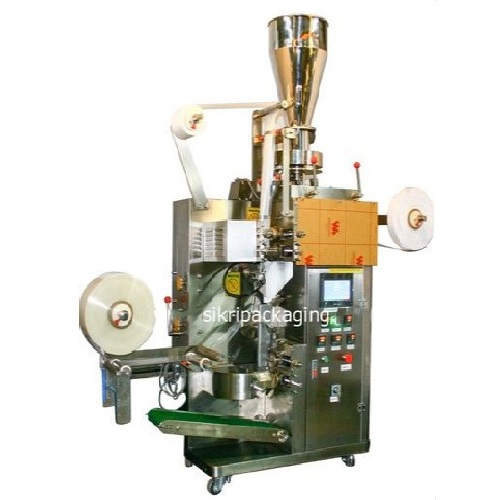

YD18
Visit our factory for a LIVE DEMONSTRATION of this machine.



Our flagship, most popular machine to pack tea bags with a string and tag and an outer envelope.

The machine 0520 YD 18 is a unique bag-in-bag machine for tea bag production. It is used to pack tea, coffee herbal medicine etc. in heat seal filter paper tea bags with string and tag, and further pack the finished individual tea bag in a plastic laminated sachet to retain the freshness for a long time.

Our machine is equipped with special assembly for forming the secondary sachet from a roll of PET-poly laminate as well as most types of Paper-PE packaging film.

There is a Special pneumatic robotic arm assembly with PLC control, for inserting the ready tea bags into the machine formed envelope sachets, with an orientation device.

The machine has an touch screen micro computer controller with stepper motors for the accurate sealing, and cutting position of the outer bag.

This special feature of the machine helps us to reduce the labor expenses and thereby helps in achieving production efficiency.


Click here to view the Video of the FFS 0520 YD 18
Our flagship machine to pack teabags with string & tag and outer envelope.


teabags outer envelopes

OUTSTANDING FEATURES

#     Simple operation. No training required for start-up, operation or maintenance. The detailed illustrated manual supplied with the machine is enough to DO-IT-YOURSELF!

#     Internationally well-known reputed components used in the construction of the machine.

#     Spares available on demand at reasonable prices. Technical support available around the year, around the clock!

#     Available fully clad with stainless steel aisi 304, and complete stainless steel aisi 304 contact parts.

#     Mounted on movable castor wheels - can be installed in a small space anywhere.

#     Electronic eye-mark registration device with stepping motor with micro computer controllers for sealing and cutting the outer bag on the packaging film eye mark.

#     The automatic features help to reduce labor expenses and thereby helps in achieving production efficiency.

#     Available for 220 volts / 110 volts AC power supply.

#     Accurate filling and easy weight adjustment with a high precision volumetric cup filler.

#     Self contained, ready to use machine. Requires a air compressor.

#     Near silent operation - the machines cannot be heard while in operation even a short distance away.


CLICK HERE To get a quotation from us as per YOUR specific requirement!


TECHNICAL SPECIFICATION


Sealing Type .... 3 side seal single chamber tea bags with outer envelope

Packing Size .... Inner Bag Length : 62.5 mm , Inner Bag Width : 50 to 60 mm. Outer Basg Length 90 mm Outer Bag Width 75 mm

String And Tag .... String Length 160 mm , Tag Dimensions : 24 mm x 24 mm

Packed Weight .... 1 gram to 5 grams

Packing Speed .... Single track: 30 to 50 sachets per minute.

Packing Material .... Heat Sealable Tea Bag Paper.

Electricals .... AC 220V 50Hz / 110V 60 Hz Single Phase, Available with electronic speed control, PID Digital Temperature Controllers, Safety : Features available to comply with international safety norms.

Machine Dimensions .... L x W x H : 750 x 560 x 1800 (mm)

Crate Dimensions .... L x W x H 965 x 760 x 2100 (mm)

Machine Weight .... 400 Kg. Net. 460 Kg. Gross
